How To Make Twin Motor RC Model Airplane – DIY Brushless Motor Model Airplane.

How to make remote control aircraft from foam board material. Two brushless motors.

INFORMATION: The Foamboard is made of foam and the outside is paper-covered. It is lightweight, robust and easy to cut. Easily bonded with hot silicone.

All of my videos : https://bit.ly/2Z9QVYK

Necessary Materials:

2 pieces of brushless motor 2205 1800-2600KV. (2204 can also be):   https://www.banggood.com/custlink/GKKmUFYwRY  OR  https://www.banggood.com/custlink/3vvvl1mtbR

2 pieces (CW & CCW) Two Blade 6×4 or three blade 6×3, 5×4.5 propellers: https://www.banggood.com/custlink/vvmGQGfBPY
OR https://www.banggood.com/custlink/KmGKkPYudf

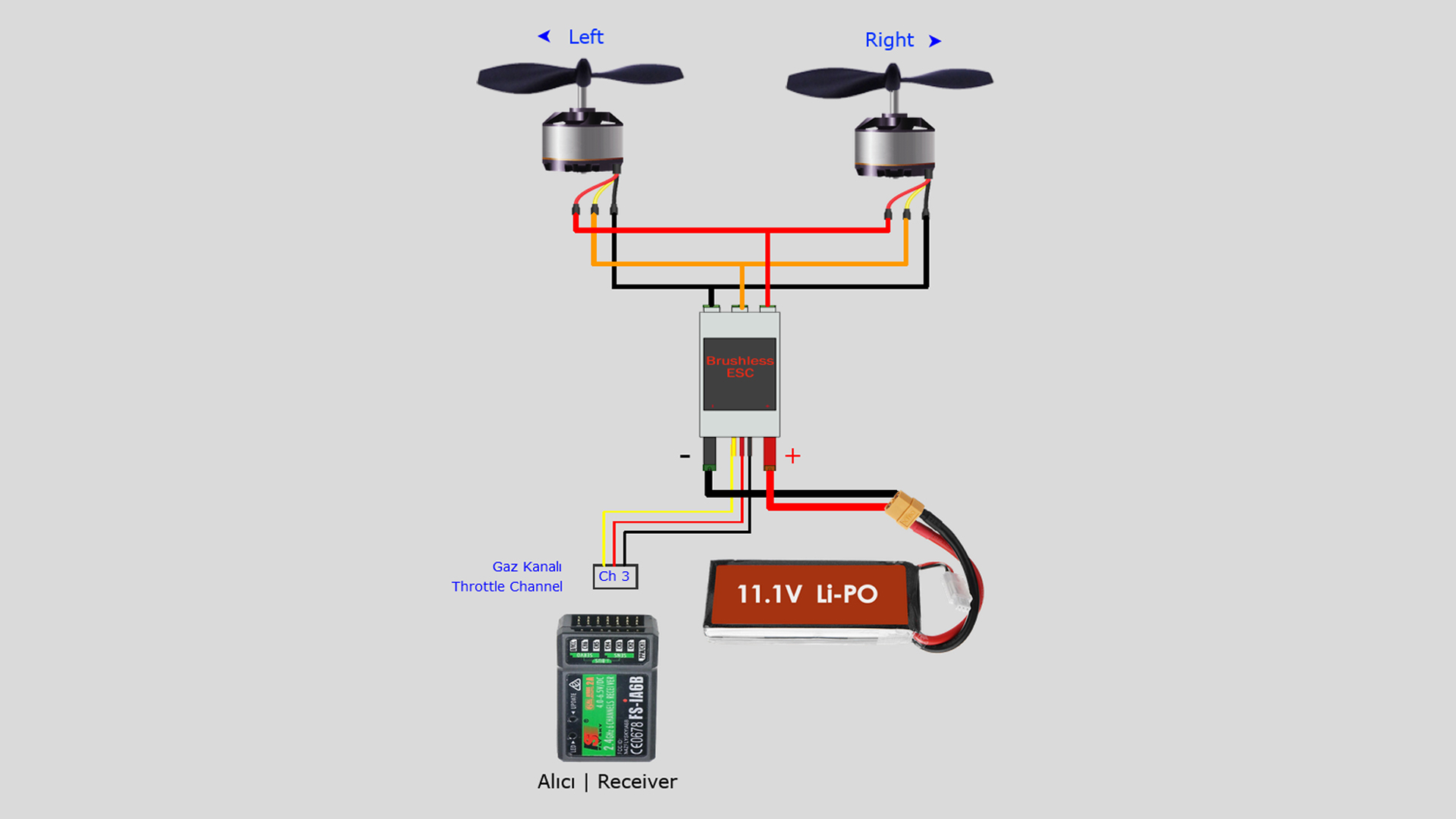

30A Brushless ESC (35-40A can be used according to the motors you will use):
https://www.banggood.com/custlink/vDKDqtyucR OR
https://www.banggood.com/custlink/3DK3ujiVcS OR
https://www.banggood.com/custlink/DDv3foIFWs

if you want two ESC: 2x 20A ESC: 2 x https://www.banggood.com/custlink/Kv3Gk5yT5q

11.1V 1300Mah LiPo battery: https://www.banggood.com/custlink/DKGDowm5qP

3pcs 35-40mm Wheel: https://www.banggood.com/custlink/DvKmauG93H

4 pieces horns: https://www.banggood.com/custlink/DDD3lw3Ihd

4 or 6 channel radio control system: https://www.banggood.com/custlink/mKKGOTvHfi

4 micro servos (may be 9gr servos): https://www.banggood.com/custlink/vvmGj73tMQ

Gold Connectors 3.5mm (for Y cable): https://www.banggood.com/custlink/vDKKj1mVun

Wheel stopper: https://www.banggood.com/custlink/KGvmj1v8IN

Y extension cable: https://www.banggood.com/custlink/D3DmBNWFtP

L type nylon clevis keper clip: https://www.banggood.com/custlink/33mKQiJoJt

Adjustable Linkage stopper (Easy Link): https://www.banggood.com/custlink/KD3GQ8rLRi

Lipo Battery Charger: https://www.banggood.com/custlink/Kv3GeU1627

2mm Rod For Landing Gear: https://www.banggood.com/custlink/KmGDnv10QD

Hot melt Glue Gun: https://www.banggood.com/custlink/3GG340cm8O

5mm white foam board (50×70 plate): https://amzn.to/2M8Fht5
5mm kraft foam board (50×70 plate): https://amzn.to/2oE2vOK

Pushrods: https://www.banggood.com/custlink/GDDKsmTBBz

Technicial Specifications:
Lenght: 60 cm
Wing span: 87 cm
Flight weight: About 715 g
Center of gravity: 4-4.5 cm from the front of the wing
Required control system: 4 channels, 4 micro servos
Required battery: 11.1V 1300Mah – 1600Mah Lipo battery
Required motor: 2205 – 2204 (1800-2400KV)
Required propeller: 5×4.5 – 6×4

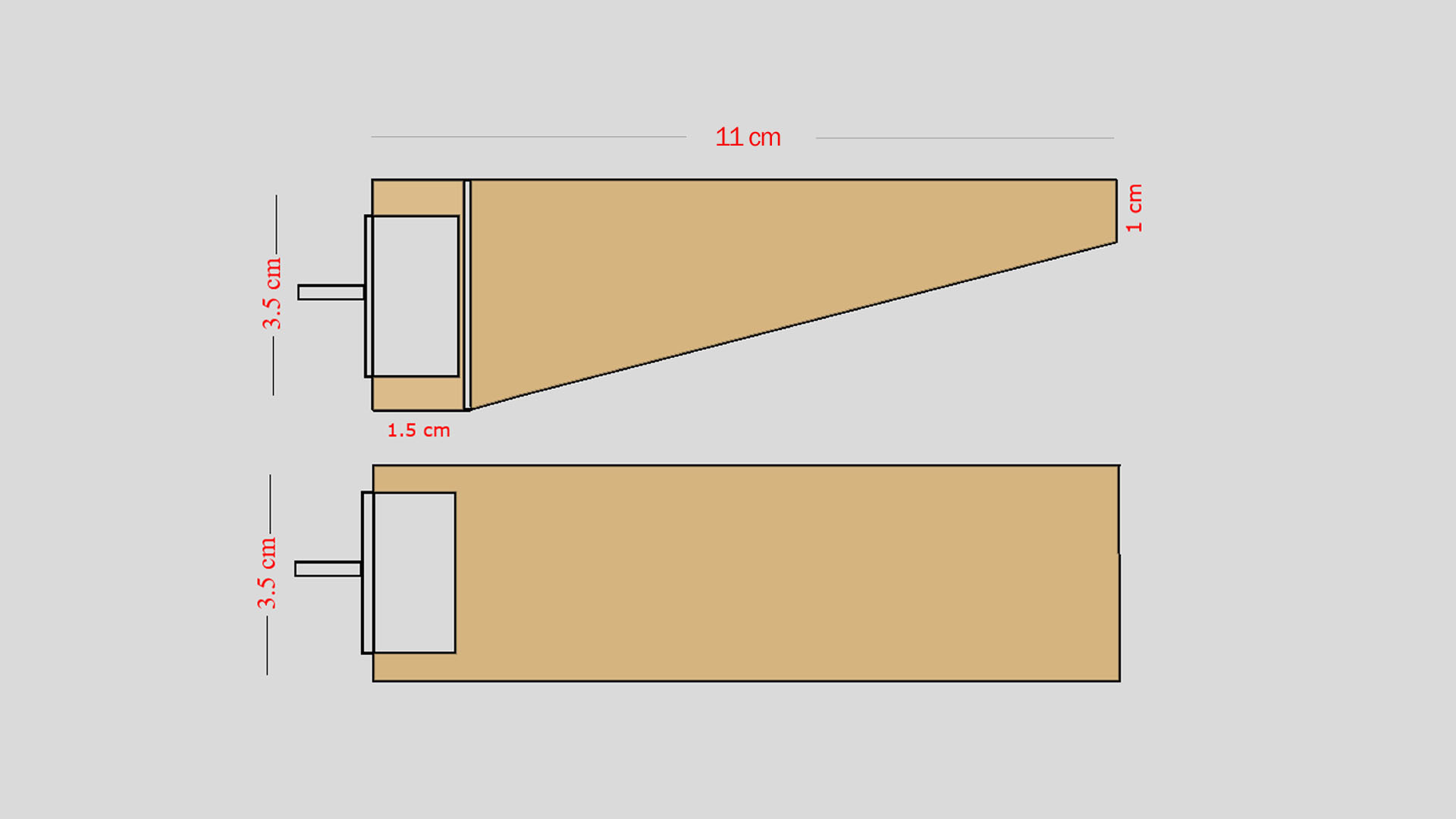

NOTE: The diagrams are for illustrating measurements. It is not a proportional template.
