Hobi Uygulamaları ve PCB (Bakır Plaket) İçin Süper kararlı Tezgah Matkabı Yapmak. DIY Mini Bench Drill

Kendi hazırladığımız elektronik devre kartlarını kararlı ve temiz bir şekilde delebilmek için 3D baskı tezgah matkabı nasıl yapılır?

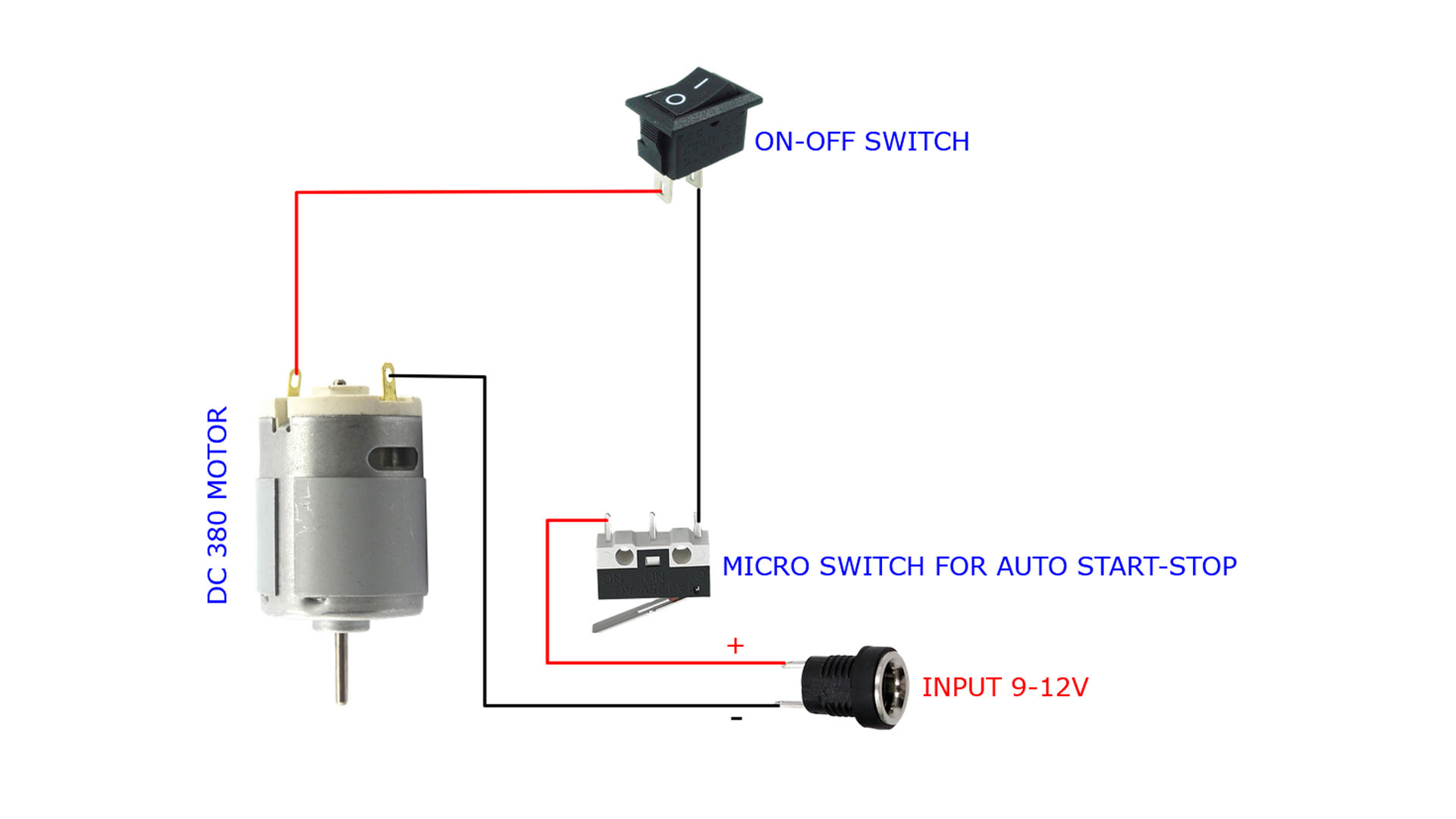

Bu tasarımımda güvenlik ve pratik kullanım için otomatik start-stop özelliği vardır.

Gerekli Malzemeler:

MGN9 Linear Ray (L:100mm) & MGN9H Carriage Block: https://s.click.aliexpress.com/e/_Dkq7fvv
Mikro Switch: https://s.click.aliexpress.com/e/_DlOIOzN
10V 2A Adaptör (5.5 X 2.5 mm): https://s.click.aliexpress.com/e/_Dli836j
DJ Jack Soket (5.5 X 2.5 mm): https://s.click.aliexpress.com/e/_DeG5CwX
Mini Drill Chuck (2.35mm) : https://s.click.aliexpress.com/e/_DBfUaEB
DC 380 Motor: https://s.click.aliexpress.com/e/_Dm7Mh1v
Rocker buton: https://s.click.aliexpress.com/e/_Ddg4ZfH
16AWG Silikon kablo: https://s.click.aliexpress.com/e/_Dmf45Wh
Vidalar (M2.2-2.3) : https://s.click.aliexpress.com/e/_DEvN4J9
M3 imbus bolt : https://s.click.aliexpress.com/e/_DCB0FK3
Spring (L:35mm, Wire:0.5mm, Diameter: 6mm) : https://s.click.aliexpress.com/e/_Dlqjj21
10x15x4 ball bearing (2 qty): https://s.click.aliexpress.com/e/_DmmtJGr
Print Circuit Board Drill Bits: https://s.click.aliexpress.com/e/_DnpZVOF
Gümüş & Siyah PLA Filament : https://s.click.aliexpress.com/e/_Dka6MIB
TPU Flex Filament: https://s.click.aliexpress.com/e/_DF2ZniF

Mini Clamp: https://s.click.aliexpress.com/e/_DEldNf5


3D Printer STL DOSYALARI:
https://www.printables.com/model/719907-super-stable-bench-drill-for-pcb-3d-diy-bench-dril

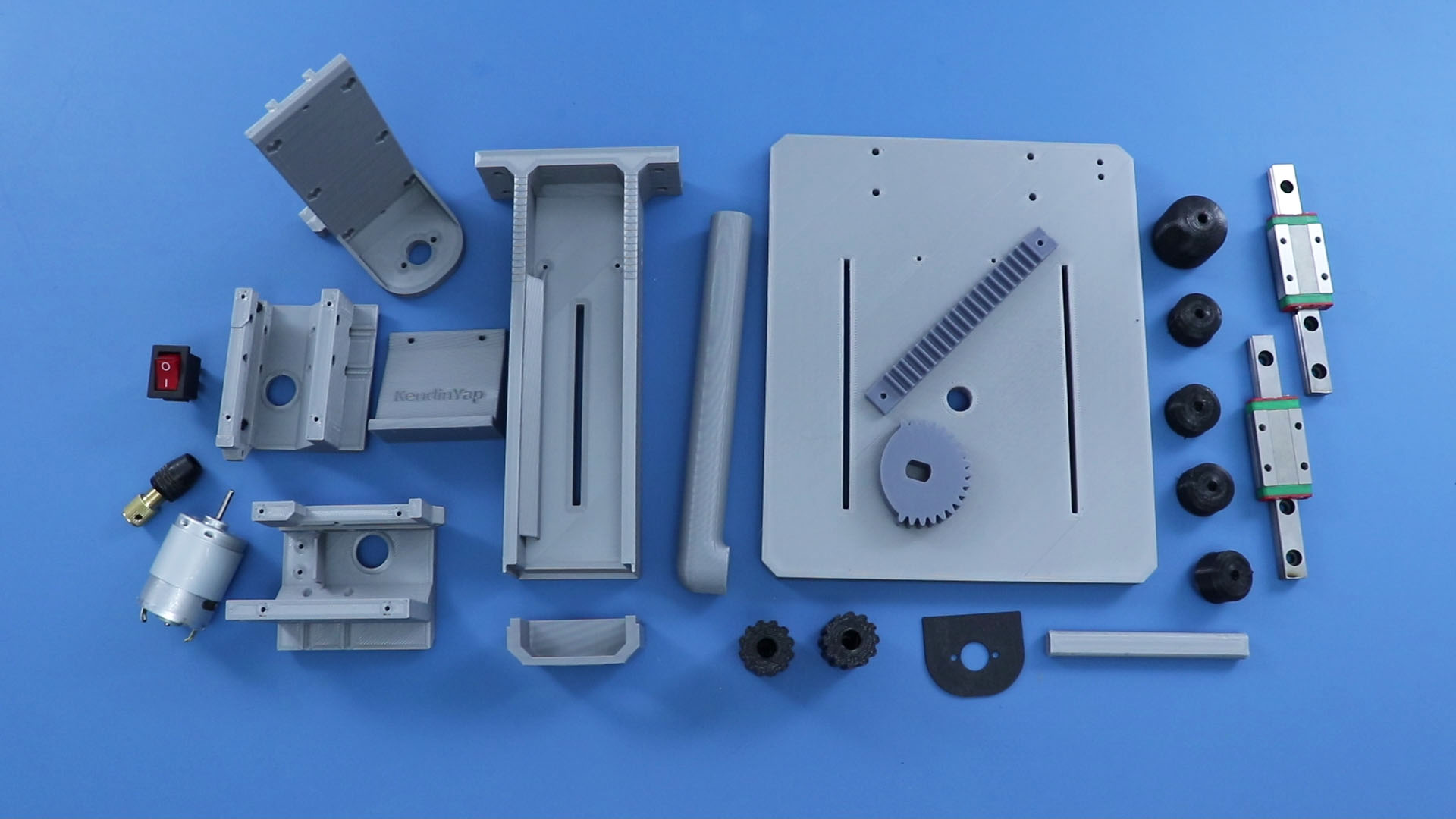

PLA Filament PARÇALARI:

Adjustment Wheel : Standart slicer ayarları
Arm : Standart slicer ayarları
Arm Part: Wall 3, Temp (Nozzle): 210-218, Infill 30
Body Left: Wall 4, Temp (Nozzle): 210-218, Infill 50
Body Right: Wall 4, Temp (Nozzle): 210-218, Infill 50
Cable Tube Part : Standart slicer ayarları
Elevator Column: Wall 4, Temp (Nozzle): 210-218, Infill 50
Elevator Column Top Part: Wall 4, Temp (Nozzle): 210-218, Infill 50
Linier Gear: Wall 4, Temp (Nozzle): 210-218, Infill 60
Spur Gear: Temp (Nozzle): 210-218, Infill 100
L Motor Mount: Wall 4, Temp (Nozzle): 210-218, Infill 50
Shaft: Temp (Nozzle): 210-218, Infill 100
Main Board (Table): Wall 5, Temp (Nozzle): 210-215, Infill 40
Socket Holder : Standart slicer ayarları
Support Part:  Temp (Nozzle): 205-215, Infill 40

ABS or ASA Filament Parça:
Heat-Insulation-Part-For-Motor: Typical ABS, ASA ayarları

TPU Filament (Flex) Parça:
Foot: Typical ABS, ASA ayarları
