How to Make Super Simple RC Airplane With Handmade RC

I used 3 servos for this model. The model can take off and land from short distances. That’s why the nose wheel is fixed. A rudder is also not required on this model. Since there is no rudder, servo cost is reduced. And the flight weight is also slightly reduced. The model is structured as simply as possible. But it has a stable flight. It can also fly at low speeds. It is also suitable for beginners.


Technicial Specifications:

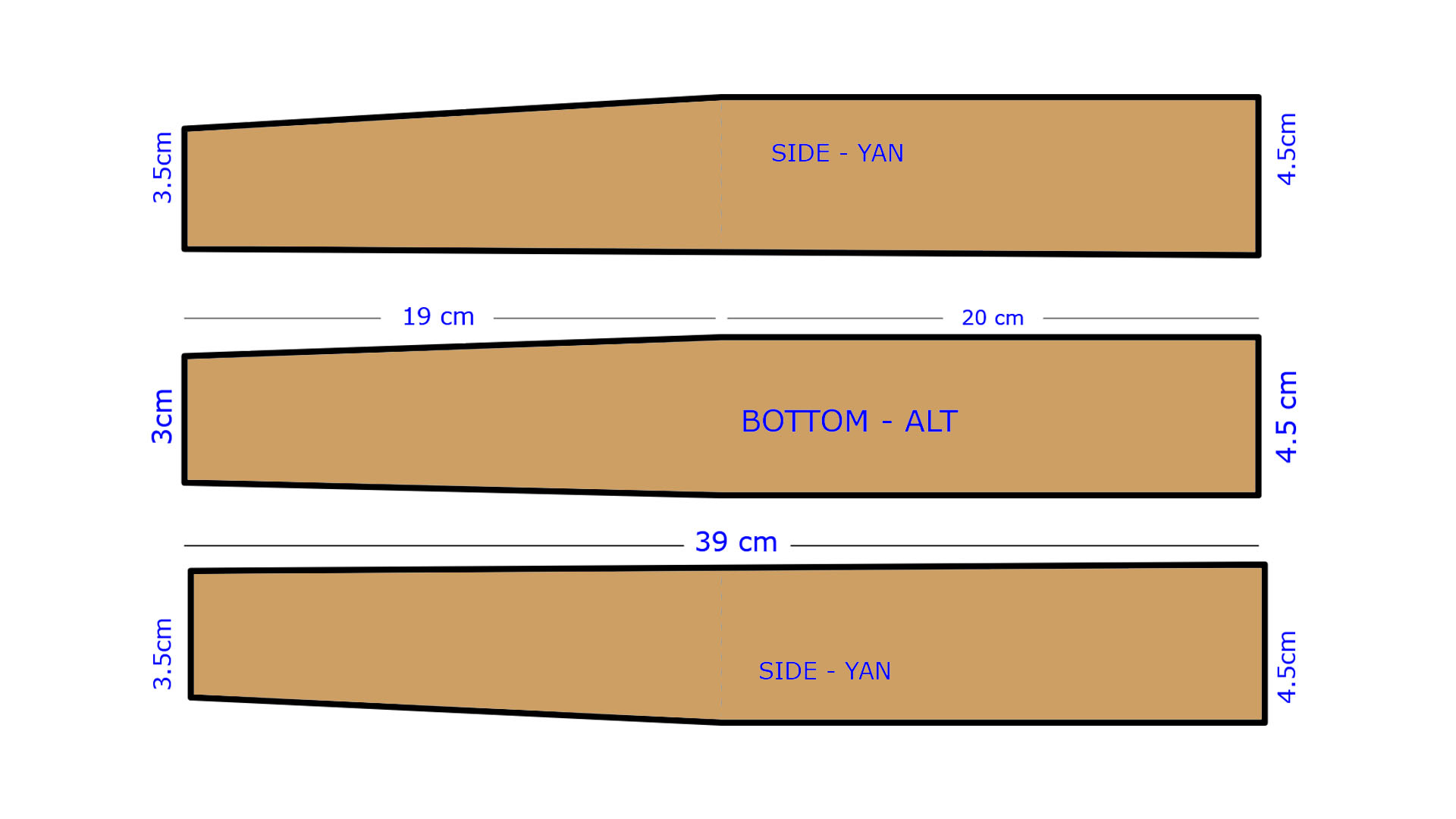

Lenght: 86 cm (33.85 inc)

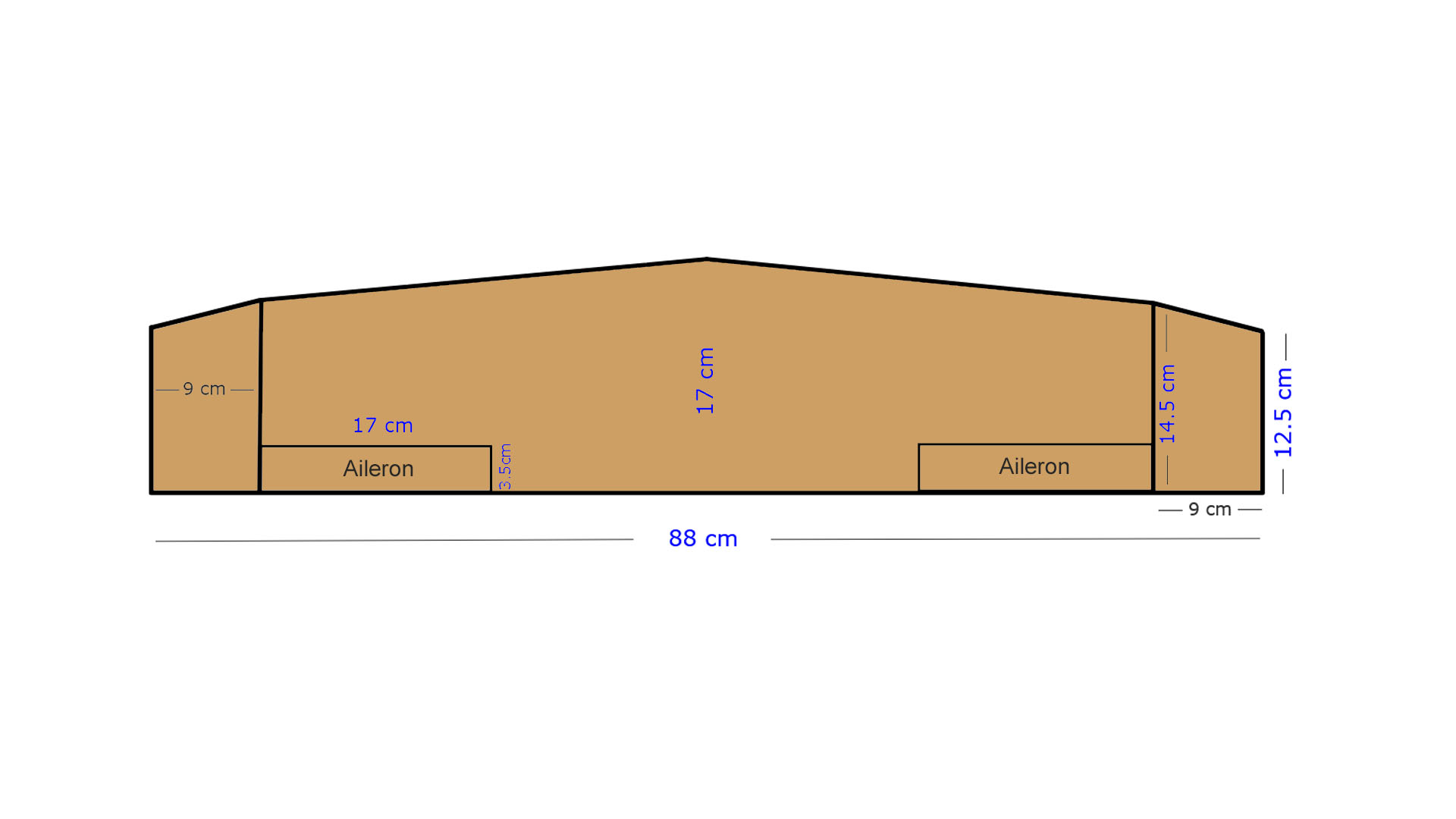

Wing span: 88 cm (34.64 inc)
Flight weight: About 419gr + battery weight
Center of gravity: 6.9 – 7cm from the front of the wing
Required control system: Min. 3 channels, 3 micro servos
Suitable battery: 11.1V 1300-2200Mah
Suitable motor: 2212 1400KV Brushless Motor
Suitable propeller: 2-Blade 8×4 or 3-blade 7×4
Flight Time: Approximately 10-20 minutes
Vbar: 0,701


Necessary materials:

2212 1400 Brushless Motor: https://s.click.aliexpress.com/e/_DdcuFpX
Propellers: (2-Blade 8×4) https://s.click.aliexpress.com/e/_Ddlc7mN OR (3-Blade 7×4) https://s.click.aliexpress.com/e/_De5Wy1j
30A Brushless ESC: https://s.click.aliexpress.com/e/_DED8ca7 OR https://s.click.aliexpress.com/e/_DCgZnID OR https://s.click.aliexpress.com/e/_DejqVBr
LiPo Battery 11.1V 1300-2200mAh: https://s.click.aliexpress.com/e/_DBm9Vyl
35-40mm wheel (3 pcs): https://s.click.aliexpress.com/e/_DlCsNet
Micro servos (3 pcs): https://s.click.aliexpress.com/e/_DmZIIYv OR https://s.click.aliexpress.com/e/_DlZO8BL
Gold Connectors 3.5mm: https://s.click.aliexpress.com/e/_DmxurfH
Wheel stopper (3 pcs)(2.1mm): https://s.click.aliexpress.com/e/_DCcQYir
Y extension cable: https://s.click.aliexpress.com/e/_DegReWn
Adjustable Linkage stopper (3 pcs)(1.8mm Easy Link): https://s.click.aliexpress.com/e/_Dkvqb51
Pushrods: https://s.click.aliexpress.com/e/_DFasUR7
Canopy Hatch Lock: https://s.click.aliexpress.com/e/_DE3cpQF
Fiber Strips Adhesive Tape (25mm): https://s.click.aliexpress.com/e/_DlMRzRZ
Fastener strip: https://s.click.aliexpress.com/e/_DnNJGjd
M3x8mm screws: https://s.click.aliexpress.com/e/_DCB0FK3
5mm Kraft Foamboard (2 plate)

Lipo Battery Charger: https://s.click.aliexpress.com/e/_DF5pqlz OR
https://s.click.aliexpress.com/e/_DlwNzmj

Hot melt Glue Gun: https://s.click.aliexpress.com/e/_DlnmZjT OR https://s.click.aliexpress.com/e/_Dl2EcLt

If you don’t want to use handmade RC:
4 or 6 channel radio control system: https://s.click.aliexpress.com/e/_DkvL2SL OR
https://s.click.aliexpress.com/e/_DduQ3fv OR https://s.click.aliexpress.com/e/_DCPHEVN

Some of the shops that sell Kraft Foam Board:


https://pacon.com/board-480/water-resistant-foam-board.html
https://tinyurl.com/4ups272k
https://www.foamboard.shop/en/foamboard-ce775-5mm-70x100cm-b.html
https://www.enasco.com/p/Pacon-Water-Resistant-Foam-Board—20-in-x-30-in-%2B9742012
https://www.mwmaterialsworld.com/es/productos-en-exclusiva/plancha-de-carton-pluma-de-colores-280-gr-m2.html
