How To Make RC Twin Ducted Fan Airplane. DIY A10 Thunderbolt-like RC Plane

Making Ducted Fan Airplane Like A10 Thunderbolt. Fast and Stable…

You Need:

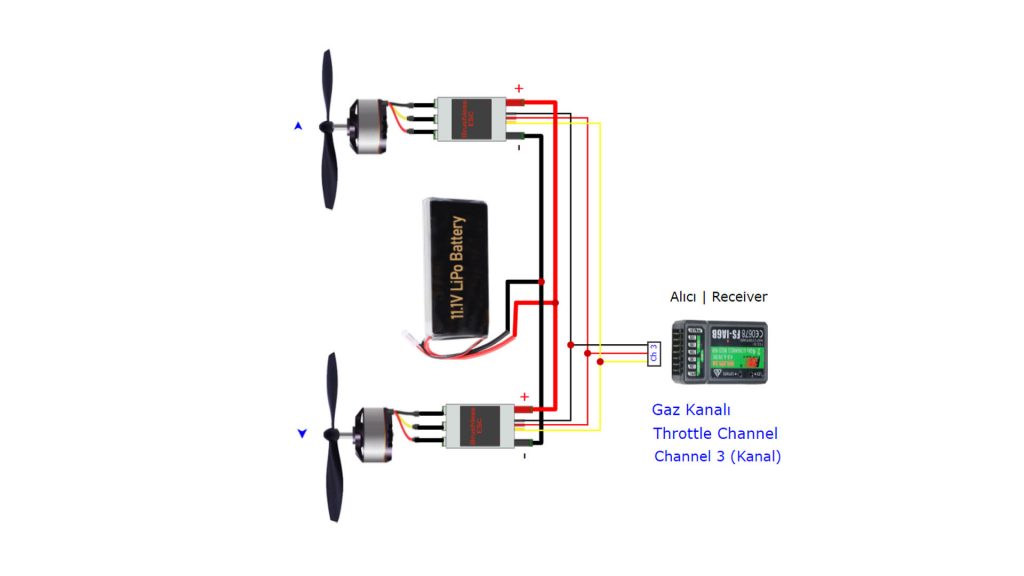

1806 CW & CCW Brusless Motor: https://s.click.aliexpress.com/e/_DBTre2F
4045 Propeller: https://s.click.aliexpress.com/e/_DEIWQpD
Emax 12A Brushless ESC : https://s.click.aliexpress.com/e/_DBPga67
11.1V 1800Mah or 2200Mah LiPo battery (3S): https://s.click.aliexpress.com/e/_DFf0Qvp
OR https://s.click.aliexpress.com/e/_Dl0OtNl
35-40mm wheel: https://s.click.aliexpress.com/e/_DBKUPzd
Pushrods: https://s.click.aliexpress.com/e/_DENblcj

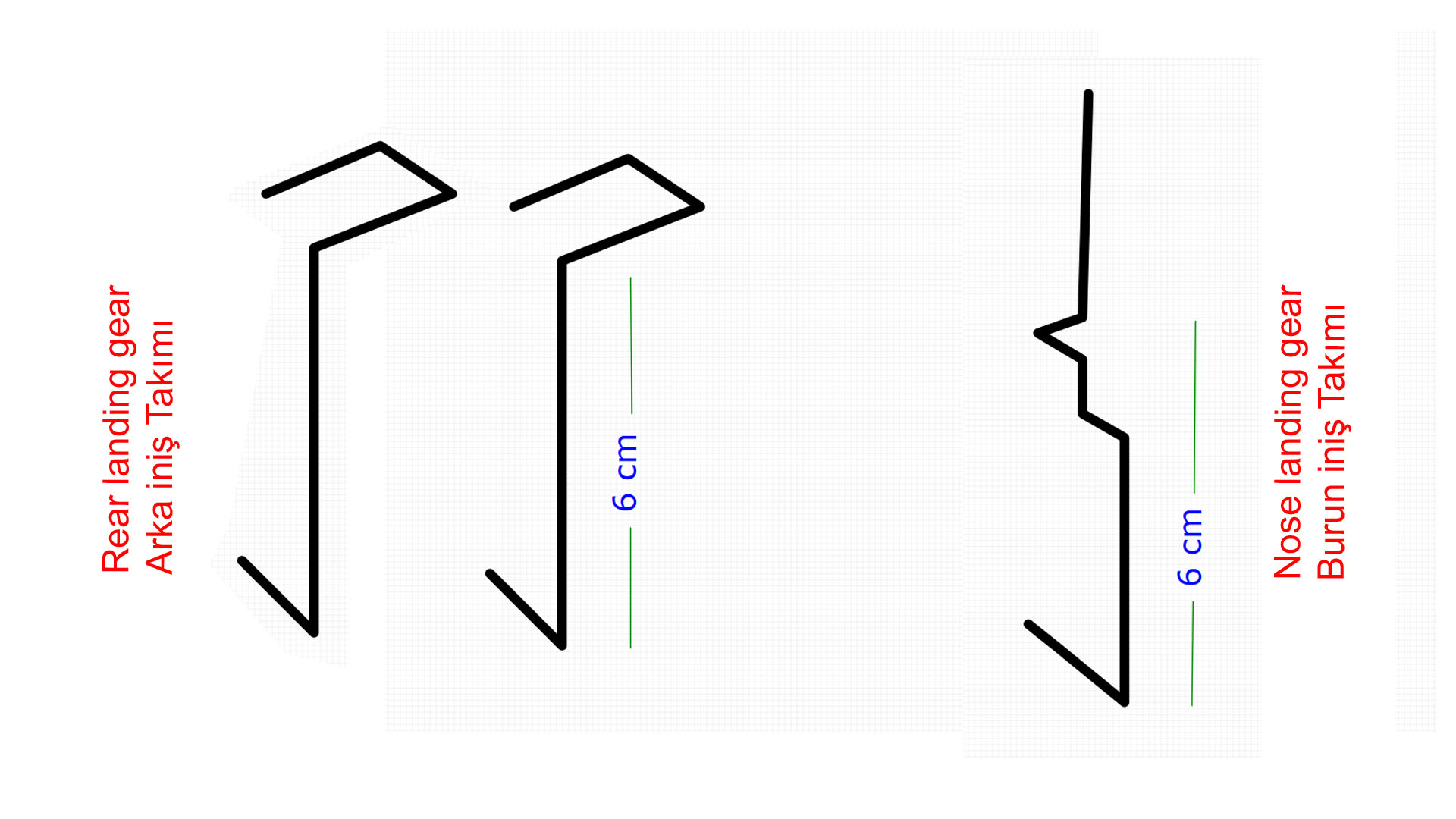

2mm Rod For Landing Gear: https://tinyurl.com/3brfzptb
Gold Connectors 3.5mm (Motor & ESC connections): https://s.click.aliexpress.com/e/_DmxurfH
Horns: https://s.click.aliexpress.com/e/_DDCKYlh
6 channel radio control system: https://s.click.aliexpress.com/e/_DCPHEVN
9gr micro servos (5 pcs): https://s.click.aliexpress.com/e/_Dm9dNHh
5gr micro servo: https://s.click.aliexpress.com/e/_DFO7543
Wheel stopper: https://s.click.aliexpress.com/e/_DCcQYir
Y extension cable: https://s.click.aliexpress.com/e/_DegReWn
Adjustable Linkage stopper (Easy Link): https://s.click.aliexpress.com/e/_Dkvqb51
L type nylon clevis keper clip: https://s.click.aliexpress.com/e/_DkuA2an
Pushrod rocker arm: https://usa.banggood.com/custlink/GKGYAUsGmz
Canopy Hatch Lock : https://s.click.aliexpress.com/e/_DE3cpQF
Fiber Strips Adhesive Tape : https://s.click.aliexpress.com/e/_DlMRzRZ
Fastener strip : https://s.click.aliexpress.com/e/_DnNJGjd

Lipo Battery Charger: https://s.click.aliexpress.com/e/_DF5pqlz OR
https://s.click.aliexpress.com/e/_DlwNzmj OR
https://www.banggood.com/custlink/vKmdARTaK8

Hot melt Glue Gun: https://s.click.aliexpress.com/e/_DkCDXLd OR
https://s.click.aliexpress.com/e/_DnDleen OR https://s.click.aliexpress.com/e/_Dl2EcLt

Onboard Camera:
RUN CAM II 1440P: https://s.click.aliexpress.com/e/_DkH4II7
RUN CAM II 4K: https://s.click.aliexpress.com/e/_DlDs9EB

Some of the shops that sell Kraft Foam Board:

https://pacon.com/board-480/water-resistant-foam-board.html
https://tinyurl.com/4ups272k
https://www.foamboard.shop/en/foamboard-ce775-5mm-70x100cm-b.html
https://www.enasco.com/p/Pacon-Water-Resistant-Foam-Board—20-in-x-30-in-%2B9742012
https://www.mwmaterialsworld.com/es/productos-en-exclusiva/plancha-de-carton-pluma-de-colores-280

Technicial Specifications:
Lenght: 67 cm
Wing span: 75 cm
Flight weight: About 675 gr
Center of gravity: 44mm – 50.8mm from the front of the wing
Required control system: Min. 6 channels, 6 micro servos
Suitable battery: 11.1V 1800Mah – 2200Mah Lipo battery
Suitable motor: 1806 Brushless Motor (2200 – 2600KV)
Suitable propeller: 3 Blade 4×4.5 (4045)
Flight Time: About 7-9 minutes for 1800mah LiPo / about 10-12 minutes for 2200mah LiPo
