How To Make Wireless Shutter Release For SLR | DIY Wireless Trigger

Remote controlled shutter release for SLR machines. You can do this circuit to prevent vibration or remotely control it when taking pictures or recording videos. I built this remote control circuit to use it with my Canon 200D and it works very good. Since the circuit uses the same socket and operating principle as the wired controller, it will work with all machines with which the wired controller of the 200D is compatible. It can be used by making appropriate changes in different machines. You can use the socket connections used by your machine for wired control by applying this circuit. The construction of such circuits requires basic practical skills. Incorrect connections can damage your machine. You are responsible for this. It is not recommended to use it without making sure the circuit is correct.

KendinYap Channel https://www.youtube.com/channel/UCgjJGE17yfovAvWUzEJFENA

You Needs:

Receiver:
1 x PT2272 M4 Encoder IC
2 x S8050 NPN Transistors
1 x 200K Resistor
2 x 1K Resistors
1 x 3mm LED
1 x 433Mhz/315Mhz RF modül : https://www.banggood.com/custlink/mK33awmlCM
or https://www.banggood.com/custlink/mmm3ju3ocW

Transmitter:
1 x PT2262 Decoder IC
4 x 1N4148 Diodes
2 x 10K Resistors
1 x 1.2M Resistor
2 x 16mm push button
1 x 433Mhz/315Mhz RF modül
https://www.banggood.com/custlink/mK33awmlCM
or
https://www.banggood.com/custlink/mmm3ju3ocW

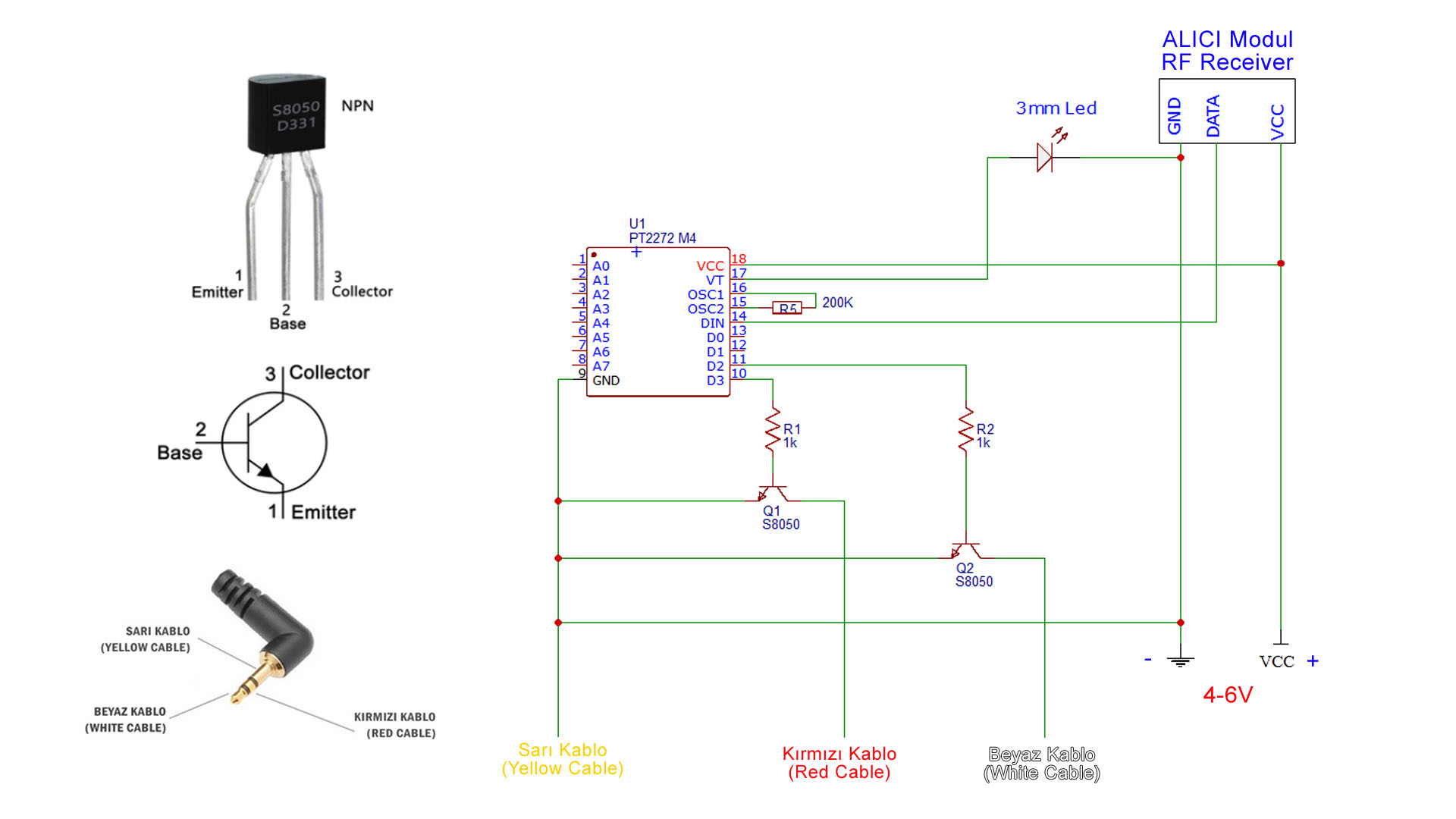

RECEIVER CIRCUIT:

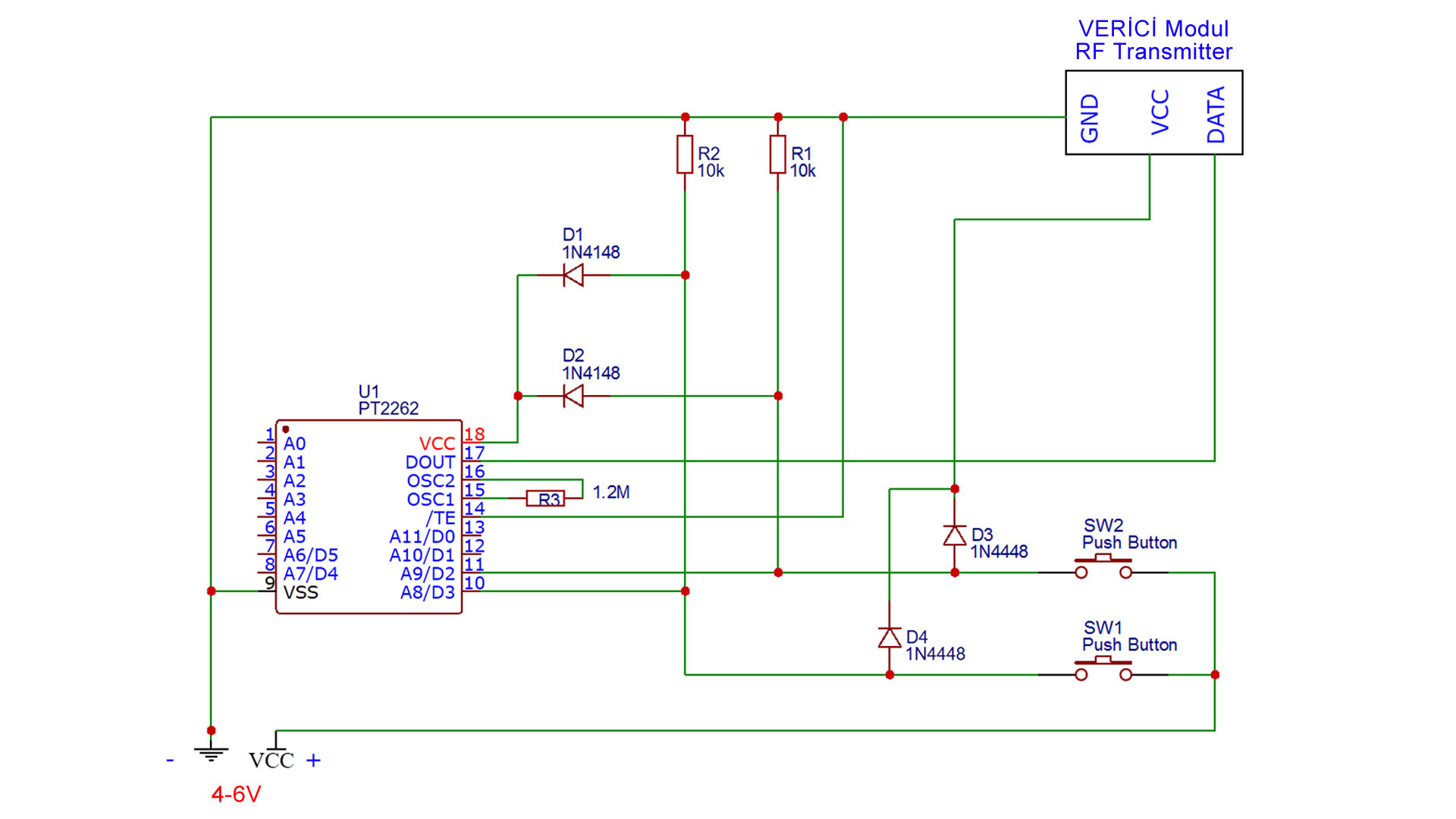

TRANSMITTER CIRCUIT:
