Making Radial Motor Airplane. Diy RC Airplane.

How to make radial motor airplane. Diy powerfull radial motor with 3 brushed motors



Necessary materials:

30A Brushed ESC: https://s.click.aliexpress.com/e/_DdC5cpH
3 pcs DC 180 Motors (39000 RPM): https://s.click.aliexpress.com/e/_Dn2hXLN
2 pcs 9gr Micro servos: https://s.click.aliexpress.com/e/_Dm9dNHh
7.4V Lipo 1500-1800 mAh (2S): https://s.click.aliexpress.com/e/_DBwsl2f OR https://www.banggood.com/custlink/mD3Y6QkS9J
4 Channels or over Radio Control: https://s.click.aliexpress.com/e/_DduQ3fv OR  https://s.click.aliexpress.com/e/_DCPHEVN
Pushrods & landing gear rod: https://s.click.aliexpress.com/e/_DENblcj
Servo control horn: https://s.click.aliexpress.com/e/_DDCKYlh
Adjustable Linkage stopper (Easy Link): https://s.click.aliexpress.com/e/_Dkvqb51
Gold Connectors 3.5mm (Motor & ESC connections): https://s.click.aliexpress.com/e/_DmxurfH
Wheel stopper: https://s.click.aliexpress.com/e/_DCcQYir
6700zz Ball bearing: https://s.click.aliexpress.com/e/_DkWEStZ
3 pcs 5mm kraft foamboard
1 pcs 3mm kraft faomboard

Amper meter (Watt Meter): https://s.click.aliexpress.com/e/_DlSLlGL
Tachometer: https://s.click.aliexpress.com/e/_DEJYZ9d

Lipo Battery Charger: https://s.click.aliexpress.com/e/_DF5pqlz OR
https://s.click.aliexpress.com/e/_DlwNzmj OR

Hot melt Glue Gun: https://s.click.aliexpress.com/e/_DkCDXLd OR
https://s.click.aliexpress.com/e/_DnDleen OR https://s.click.aliexpress.com/e/_Dl2EcLt

Radial Motor STL FILES: https://drive.google.com/file/d/1CoIprIWxMIVNvaiVO-NZPi8i_hjhaiOl/view?usp=sharing





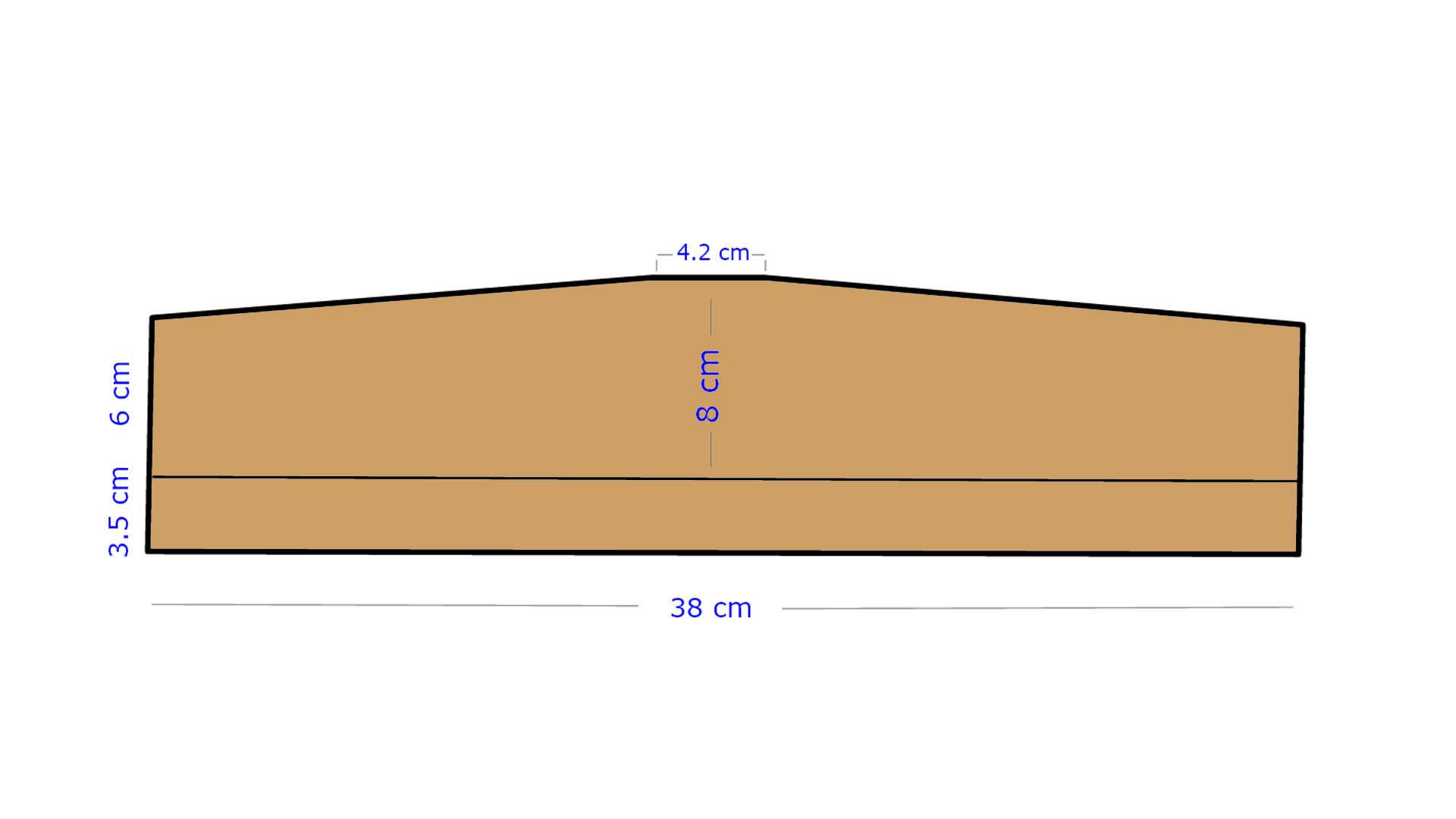

Technicial Specifications:
Lenght: 65 cm

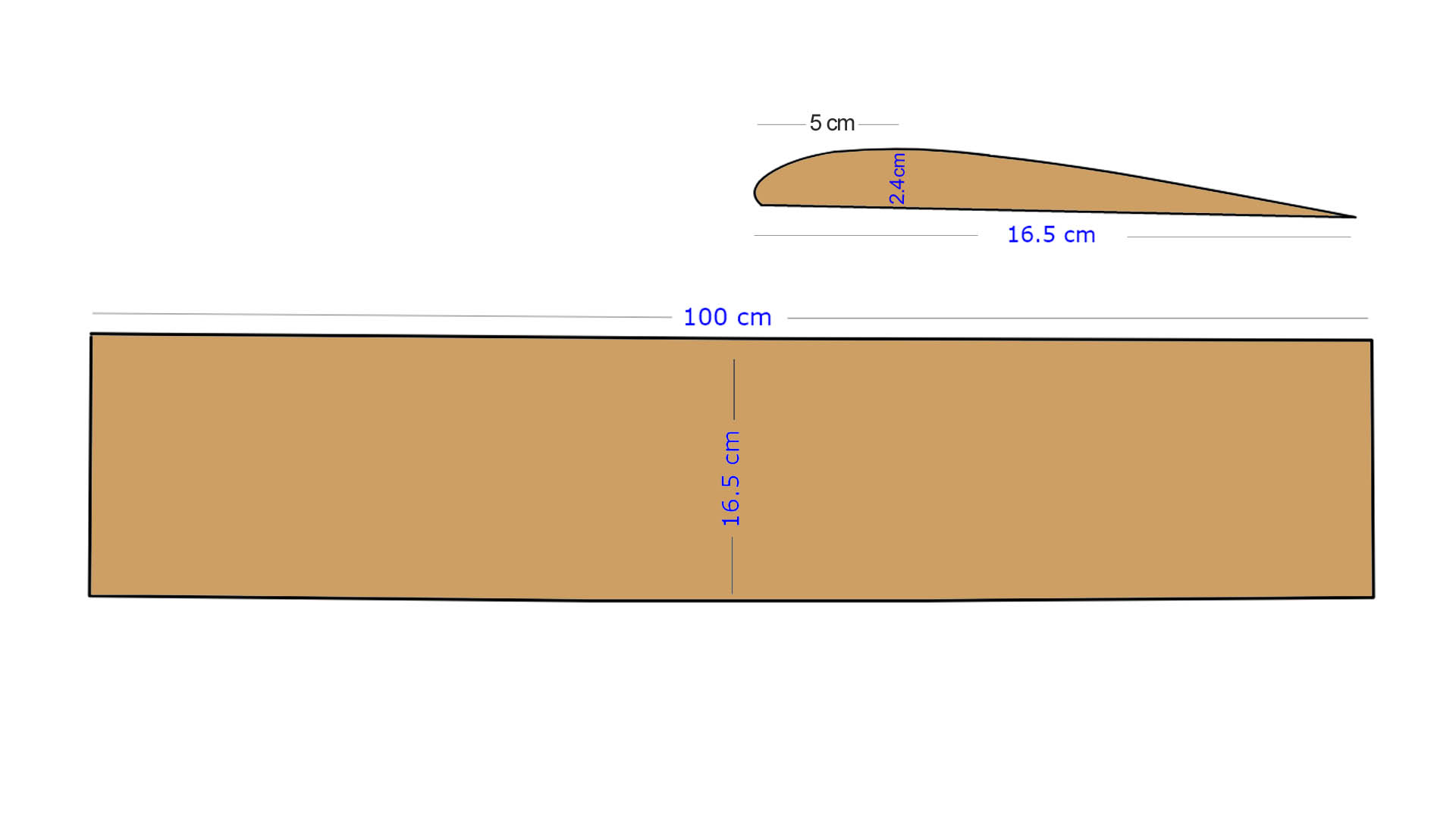

Wing span: 111 cm
Wing area: 1683 cm2
Flight weight: About 645 gr
Center of gravity: 5.6mm – 6.5mm from the front of the wing
Required control system: Min. 3 channels, 2 micro servos (9gr)
Suitable battery: 7.4V 1500Mah – 1800Mah Lipo battery
Suitable motor: DC 180 Brushed Motor (3 pcs)
Suitable propeller: 2 Blade 10×6
Flight Time: About 5-6 minutes
