How To Make a Twin Motor RC Model Airplane. 2 x Brushed DC 180 Motors

2 x DC 180 Motors. How To Make Dual Motors RC Airplane At Home.
Flight performance is very good. A model aircraft with very stable landing and take-off.

Materiel is foam board:
The Foamboard is made of foam and the outside is paper-covered. It is lightweight, robust and easy to cut. Easily bonded with hot silicone.

You Need:

20A ESC https://www.banggood.com/custlink/DKvhdIC0Ae
4 x 9gr Micro servos https://www.banggood.com/custlink/Kv3DS6stKo
2S 7.4V 800Mah LiPo Battery https://www.banggood.com/custlink/DGvGZeQFYk
4 – 6 Channels Radio Control https://www.banggood.com/custlink/Gm3KSgAHEE
Lipo Battery Charger: https://www.banggood.com/custlink/Kv3GeU1627
Hot melt Glue Gun: https://www.banggood.com/custlink/DKGmsHft2d
Pushrods: https://www.banggood.com/custlink/GDDKsmTBBz
2mm Rod For Landing Gear: https://www.banggood.com/custlink/KmGDnv10QD
Canopy Hatch Lock link: https://www.banggood.com/custlink/mvkmnzgozt
Servo control horn: https://www.banggood.com/custlink/KKKDAIrOhy
Adjustable Linkage stopper (Easy Link): https://www.banggood.com/custlink/KD3GQ8rLRi
Gold Connectors 3.5mm (Motor & ESC connections): https://www.banggood.com/custlink/vDKKj1mVun
30mm Wheel: https://www.banggood.com/custlink/3mvGNiClRw
Wheel stopper: https://www.banggood.com/custlink/KGvmj1v8IN
Y extension cable: https://www.banggood.com/custlink/D3DmBNWFtP
Lipo Battery Charger: https://www.banggood.com/custlink/Kv3GeU1627
2 x DC 180 Motors (39000 RPM) https://amzn.to/35rD8Ar or bit.ly/2L62JqC
2 x 108mm Propellers (CW&CCW): bit.ly/33MPMbY
Kraft foam board (50×70 plate) https://amzn.to/2oE2vOK
Mini Bench Vice Clamp: https://www.banggood.com/custlink/vGmDA8JoE3

Spec:
Fuselage: 680 mm
Wing:  600 mm
Flight weight: 410 gr
Center of Gravity: 33-37mm back from the leading edge of the wing, measured at side fusulage
Radio: Minimum 4 channels, 4 micro servos
Battery: 7.4V 800Mah Lipo
Motor: DC 180 39000RPM Fırçalı motor x 2
Propeller: 108mm CV&CCW Pervane x 2
Approximately flight time: 6 minutes 800mah lipo / 8 minutes for 1000mah lipo

Wing

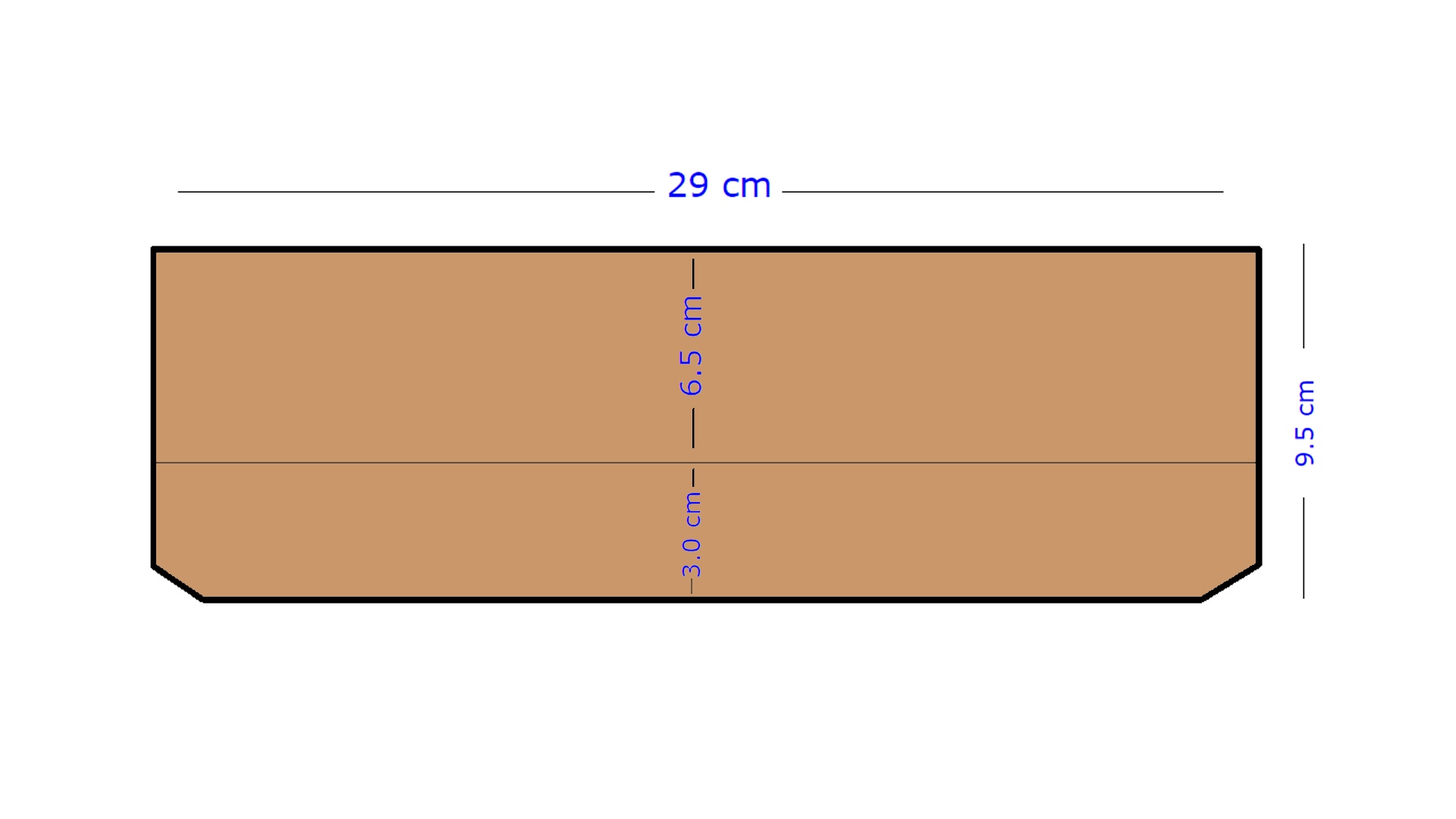

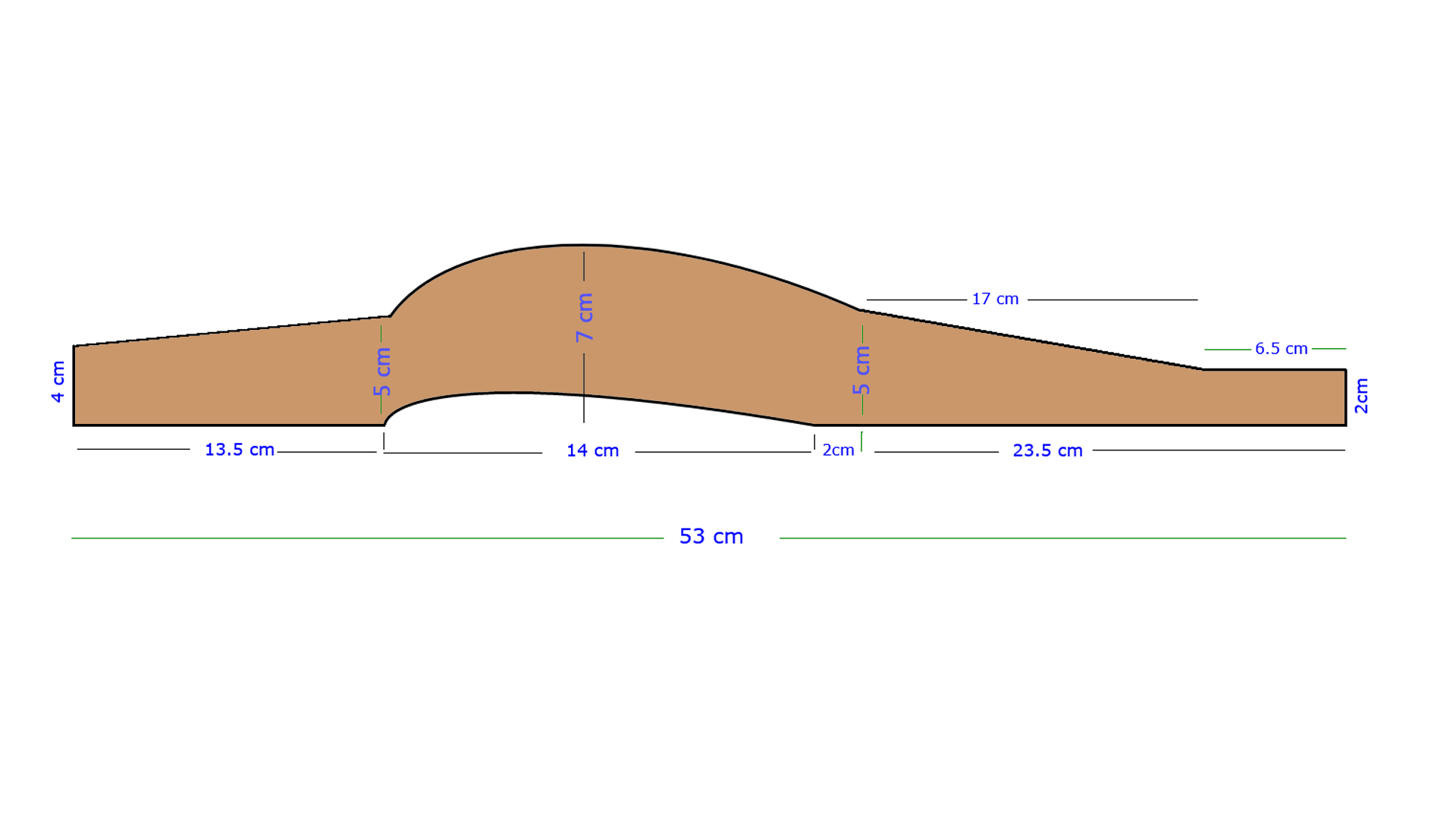

Body & Elevator & Rudder

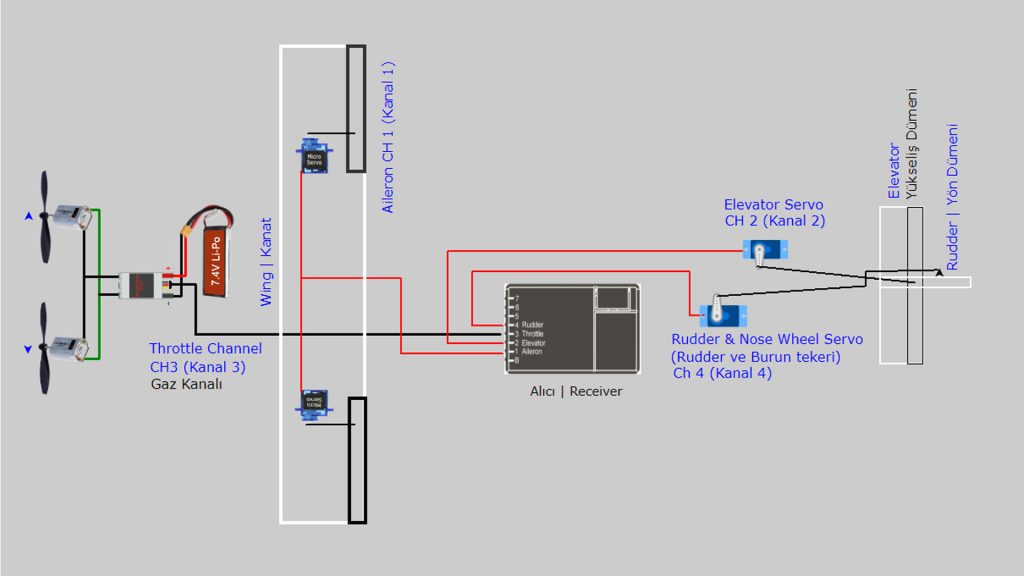

Motor, ESC, Servo, Receiver
